“W” Series eighteen inch by eighteen inch Bottom hinged chute intake door with one twenty volt electrical interlock
“W” Series eighteen inch by eighteen inch Bottom hinged chute intake door with one twenty volt electrical interlock

SKU: 500824
Regular Price: $1,209.94
Patient Regular Price: $1,149.44
Special Order Product

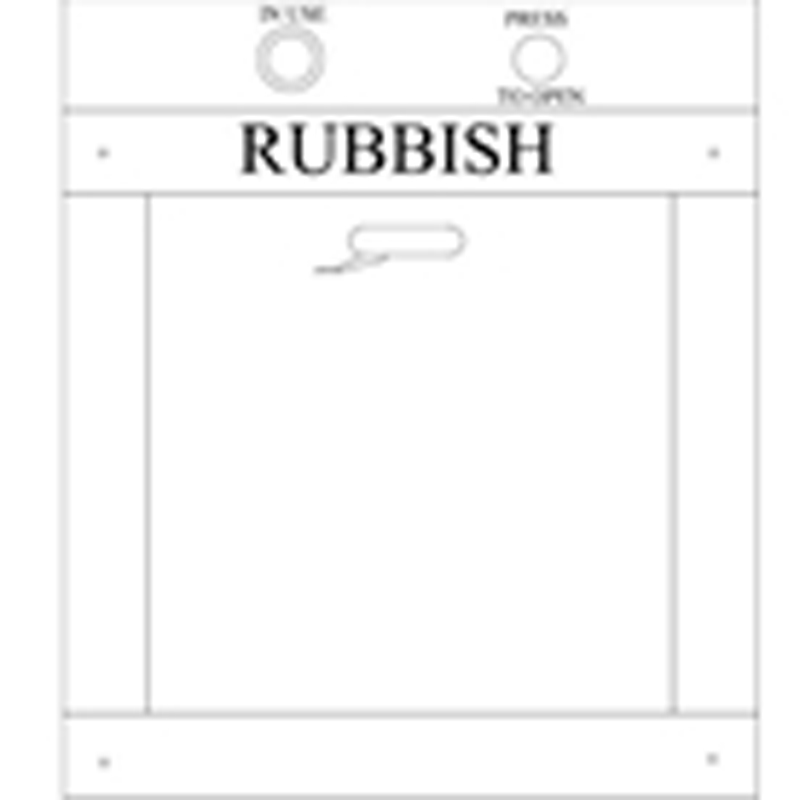

18"x18" Bottom Hinged Intake Door with 120vac Electrical Interlock, "W" Series
18"w x 18"h Bottom hinged, hand-operated, self-closing, positive latching, 1-1/2 hour UL labeled (30 minute - 250 degree max temperature rise) chute intake door assembly complete with 120vac electrical interlock. Includes replaceable pull handle, thumb trigger style latch, enclosed door closer, 1/2” shaft hinge with bronze bearings, removable door panel and stainless steel trim. Door Panel made with 20 gauge type 304 stainless steel front with No. 4 finish and 18 gauge satin coat galvannealed steel back. The door closer is mounted outside to the trash opening in a fully enclosed heavy duty box accessible from the front to ensure years of trouble free operation. Stainless Steel trim available blank or embossed with "Rubbish", "Soiled Linen", or "Recycle".

Includes a 120vac electrical interlock with push button and in-use indicator light. Interlocks allow only one door open at a time to reduce clogging and enhance safety during peak usage periods. User must unlock the door by pressing the button then operating the latch or handle separately. Interlocks are designed to be normally locked so that in a power failure doors can not be opened. This also allows all doors to be locked out by turning off the power switch when working beneath the chute, greatly reducing liability and injuries.

Our 120vac Electrical interlocked chute intake doors are engineered for use on 120vac 60hz line voltage therefore the intake door electrical panels and components are UL listed. Wiring is to be in conduit in most applications. Check with your local building authority regarding installation requirements. Requires basic or programmable control and power supply for operation.

A direct replacement for Wilkinson Chutes Canada and Chute Source #W-3 with interlocks (seven wire system) and replaces easily with minimal wall repair. Can be retrofitted to others chutes with sheet metal adaptors and wall modifications to fit chute door openings for doors of the same size. However, interlock compatibility must be determined prior to ordering as a replacement. Accessories available include key locks, foot operation and more. Complies with building codes, NFPA-82 and ASTM standards. Made in Canada by Union Craftsmen.

Chute Doctor Keeping Your Chute Healthy™

California License #767939; Arizona License #ROC149925

“W” Series eighteen inch by eighteen inch Bottom hinged chute intake door with one twenty volt electrical interlock
“W” Series eighteen inch by eighteen inch Bottom hinged chute intake door with one twenty volt electrical interlock

Recently Viewed

18"x18" Bottom Hinged Intake Door with 120vac Electrical Interlock, "W" Series

18"w x 18"h Bottom hinged, hand-operated, self-closing, positive latching, 1-1/2 hour UL labeled (30 minute - 250 degree max temperature rise) chute intake door assembly complete with 120vac electrical interlock. Includes replaceable pull handle, thumb trigger style latch, enclosed door closer, 1/2” shaft hinge with bronze bearings, removable door panel and stainless steel trim. Door Panel made with 20 gauge type 304 stainless steel front with No. 4 finish and 18 gauge satin coat galvannealed steel back. The door closer is mounted outside to the trash opening in a fully enclosed heavy duty box accessible from the front to ensure years of trouble free operation. Stainless Steel trim available blank or embossed with "Rubbish", "Soiled Linen", or "Recycle".

Includes a 120vac electrical interlock with push button and in-use indicator light. Interlocks allow only one door open at a time to reduce clogging and enhance safety during peak usage periods. User must unlock the door by pressing the button then operating the latch or handle separately. Interlocks are designed to be normally locked so that in a power failure doors can not be opened. This also allows all doors to be locked out by turning off the power switch when working beneath the chute, greatly reducing liability and injuries.

Our 120vac Electrical interlocked chute intake doors are engineered for use on 120vac 60hz line voltage therefore the intake door electrical panels and components are UL listed. Wiring is to be in conduit in most applications. Check with your local building authority regarding installation requirements. Requires basic or programmable control and power supply for operation.

A direct replacement for Wilkinson Chutes Canada and Chute Source #W-3 with interlocks (seven wire system) and replaces easily with minimal wall repair. Can be retrofitted to others chutes with sheet metal adaptors and wall modifications to fit chute door openings for doors of the same size. However, interlock compatibility must be determined prior to ordering as a replacement. Accessories available include key locks, foot operation and more. Complies with building codes, NFPA-82 and ASTM standards. Made in Canada by Union Craftsmen.
