Latch Barrel Assembly with 1-11/16
Latch Barrel Assembly with 1-11/16

SKU: 500481
Regular Price: $32.25
Patient Regular Price: $30.64
Normally Stocked
Latch Barrel Assembly for Chute Intake Doors, 1-23/32" Set-Back

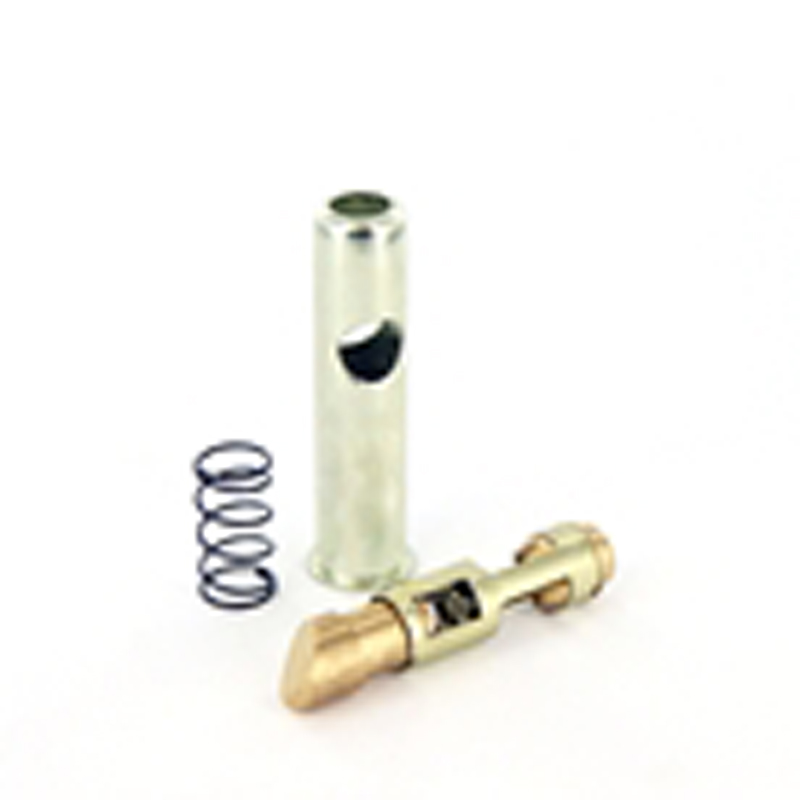

The latch barrel assembly is made up of the tube (case), latch and main spring and has a 1-23/32" set back from the inside face of the latch tube to the center of the spindle hole. It replaces a latch barrel assembly with a 1-11/16" set back. This style latch is used by almost all chute door manufacturers and this is a direct replacement for same. This is used in all older Wilkinson side hinged intake doors. See product spec's for detailed dimensions. This latch barrel assembly does not include the trigger and spindle assembly available separately. We also have a 1-21/32" set-back latch assembly, which is used in the Wilkinson bottom hinged intake doors.

Latches of this style are commonly referred to as side hinged, bottom hinged, short or long latches, depending on manufacturer. Some chute door manufacturers use one size (set back) for both side and bottom hinged intake doors while others use one size door latch for the bottom hinged chute intake door with another size door latch for the side hinged chute intake door. To determine the proper latch please see the attached spec's or send us a sample for replacement. Differences in size are small so care must be taken to ensure ordering of the correct part.

Chute Doctor Keeping Your Chute Healthy™

California License #767939; Arizona License #ROC149925

Latch Barrel Assembly with 1-11/16
Latch Barrel Assembly with 1-11/16

See 360° Product View

Recently Viewed

Latch Barrel Assembly for Chute Intake Doors, 1-23/32" Set-Back

The latch barrel assembly is made up of the tube (case), latch and main spring and has a 1-23/32" set back from the inside face of the latch tube to the center of the spindle hole. It replaces a latch barrel assembly with a 1-11/16" set back. This style latch is used by almost all chute door manufacturers and this is a direct replacement for same. This is used in all older Wilkinson side hinged intake doors. See product spec's for detailed dimensions. This latch barrel assembly does not include the trigger and spindle assembly available separately. We also have a 1-21/32" set-back latch assembly, which is used in the Wilkinson bottom hinged intake doors.

Latches of this style are commonly referred to as side hinged, bottom hinged, short or long latches, depending on manufacturer. Some chute door manufacturers use one size (set back) for both side and bottom hinged intake doors while others use one size door latch for the bottom hinged chute intake door with another size door latch for the side hinged chute intake door. To determine the proper latch please see the attached spec's or send us a sample for replacement. Differences in size are small so care must be taken to ensure ordering of the correct part.
SKU: 500481
Regular Price: $32.25
Patient Regular Price: $30.64Want a better price?
Quantity:
Normally StockedHelp
See Quantity Discounts
Installation available for this item! Please enter your zip code to see if we provide service in your area:
Property Zip Code
Check Availability and Pricing
