Chute Sections

Use chute sections to repair damaged chute tubes or to extend them. We carry a wide range of standard and custom-size chute sections to repair or modify your existing chutes. We also provide prompt, professional repairs, from patches to complete replacements, for properties in our service areas.

Need a complete new chute? Contact Western Chutes at 800-755-2488 or info@WesternChutes.com for pricing of complete chutes.


Page:1 2 3 4 5  Move Next
18" Round, Horizontal, Fire Rated Chute Discharge Door Housing, Galvannealed Steel

“W” Series, Discharge Door round housing only for an 18" Type “AC” chute door assembly. This square to round housing is manufactured of 20 gauge galvannealed, flat sheet metal ready to accommodate the same size discharge door insert. Type 304...

SKU: 500148
$98.33
$93.41

24" Round, Telescopic Chute Section 4' long, 16 gauge

This chute section is made of 16 gauge galvannealed steel. It is a telescopic chute section allowing it to be shortened or lengthened to fit perfectly in any gap of the chute. Maximum length: 4 feet.

SKU: 700052
$0.00

ADD Angle Clips to Chute Section

Add four (4) Angle Clips to the bottom or top of a new chute section. Bottom clips allow a discharge door to be attached. Discharge door and/or housing not included. Top clips allow the new chute section to be attached to a chute section above.

SKU: 501223
$100.00
$95.00

Additional 24" Diameter Chute Section - Up To 4'

Additional #16ga galvannealed chute section for a 24" diameter chute up to 4' in length. Customer to specify finished length. Includes FOUR (4) bottom clips welded to the bottom of the section.

SKU: 501222
$230.00
$218.50

Custom Size Type AC Horizontal Discharge Housing Upcharge

Change a standard Type AC Horizontal Chute Discharge Door housing product to a custom size. Requires standard round or square housing be included in cart. This charge is to customize a standard housing and is an ADD to the price of the standard...

SKU: 501047
$115.50

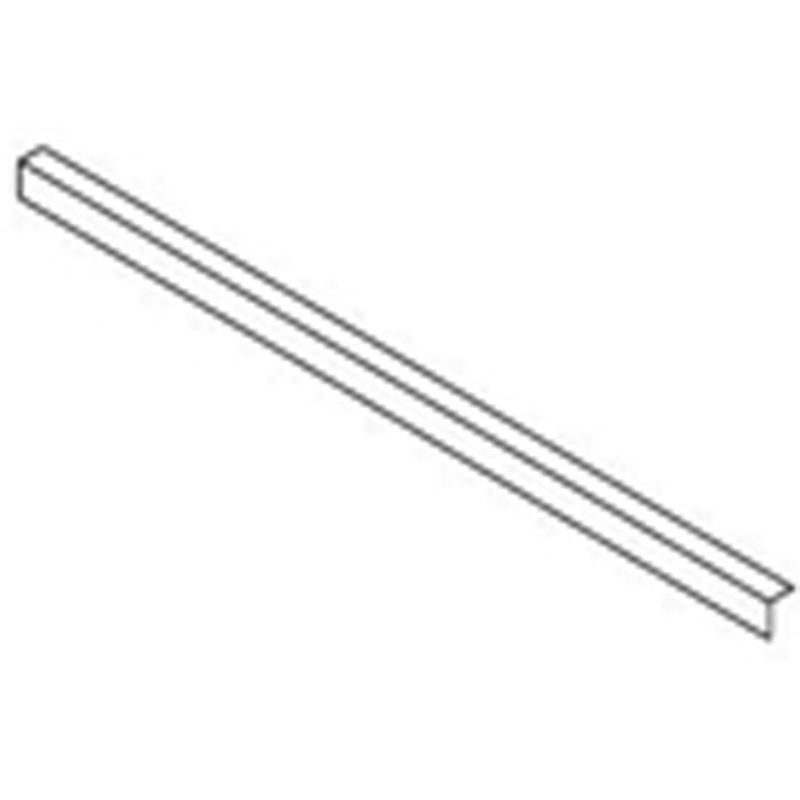

Draft Stop Mounting Angle

2" x 1.5" x 48" long, #20 gauge galvannealed angle piece to be attached to shaft walls when draft stop is being installed between floors or has no floor support structure inside the chute shaft. This can be cut in the field to any length needed.

SKU: 501054
$11.38
$10.81

Oversize Chute Section at Top

The top of the chute section is increased slightly to ease mating to most existing chute sections.

SKU: 501224
$87.50
$83.13

Sheet Metal Intake Door Adaptor

Sheet metal intake adaptor used to fit intake doors into existing chutes. This item is custom fabricated and installed in the field. INSTALLATION LABOR OPTION MUST BE ACCEPTED AND PURCHASED FOR THIS SERVICE TO BE INCLUDED. Not available outside...

SKU: 501103
$45.00
$42.75

18" Square, Horizontal, Fire Rated Chute Discharge Door Housing, Galvannealed Steel

“W” Series, Discharge Door square housing only for an 18" Type “AC” chute door assembly. This square housing is manufactured of 20 gauge galvannealed, flat sheet metal ready to accommodate the same size discharge door insert. Type 304 Stainless...

SKU: 500141
$98.33
$93.41

18" Round, Horizontal, Fire Rated Chute Discharge Door Housing, Stainless Steel

MUST CALL FOR PRICE! “W” Series, Discharge Door round housing only for an 18" Type “AC” chute door assembly. This square to round housing is manufactured of Type 304 Stainless Steel, flat sheet metal ready to accommodate the same size discharge...

SKU: 500449
$943.75
$896.56

18" Square, Horizontal, Fire Rated Chute Discharge Door Housing, Stainless Steel

MUST CALL FOR PRICE! “W” Series, Discharge Door square housing only for an 18" Type “AC” chute door assembly. This square housing is manufactured of Type 304 Stainless Steel, flat sheet metal ready to accommodate the same size discharge door...

SKU: 500463
$1,321.25
$1,255.19

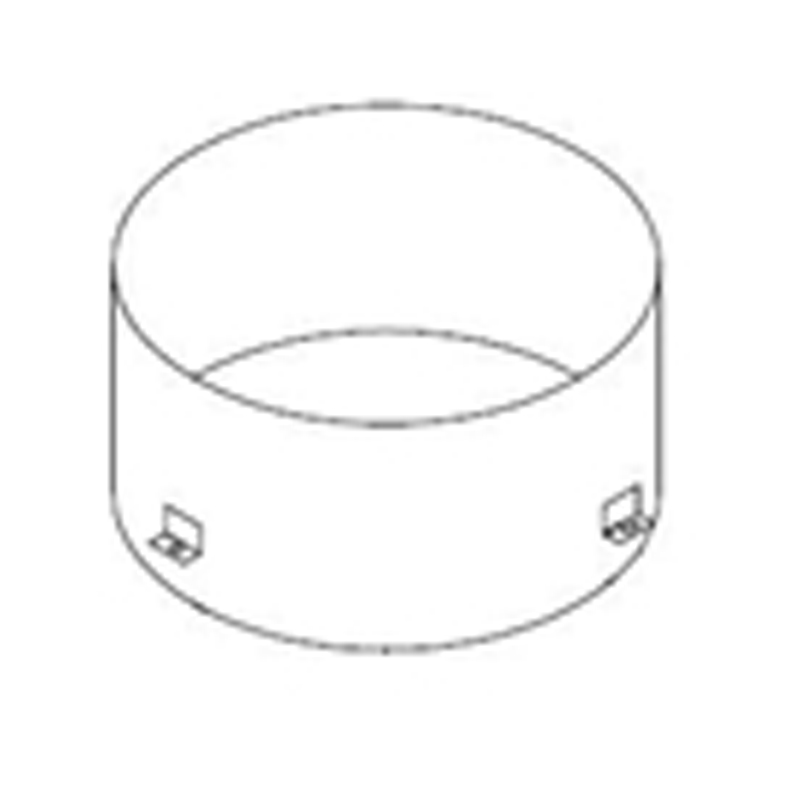

18” Round 2-1/2” Long Extension Collar for Chute Discharge Door, Type “AC”

“W” Series, Discharge Door extension collar only for an 18" diameter Type “AC” chute door assembly. Collar is made of 20 gauge galvannealed steel. Collar allows for through bolting to a round chute which does not have mounting clips on the bottom...

SKU: 500526
$50.16
$47.65

18” Square 2-1/2” Long Extension Collar for Chute Discharge Door, Type “AC”

“W” Series, Discharge Door extension collar only for an 18" diameter Type “AC” chute door assembly. Collar is made of 20 gauge galvannealed steel. Collar allows for through bolting to a square chute which does not have mounting clips on the...

SKU: 500027
$25.65
$24.37

18” Round 6-1/2” Long Extension Collar for Chute Discharge Door, Type “AC”

“W” Series, Discharge Door extension collar only for an 18" diameter Type “AC” chute door assembly. Collar is made of 20 gauge galvannealed steel. Collar allows for through bolting to a round chute which does not have mounting clips on the bottom...

SKU: 500736
$62.99
$59.84

18” Square 6-1/2” Long Extension Collar for Chute Discharge Door, Type “AC”

“W” Series, Discharge Door extension collar only for an 18" diameter Type “AC” chute door assembly. Collar is made of 20 gauge galvannealed steel. Collar allows for through bolting to a square chute which does not have mounting clips on the...

SKU: 500029
$51.30
$48.74

18” Round 12” Long Extension Collar for Chute Discharge Door, Type “AC”

“W” Series, Discharge Door extension collar only for an 18" diameter Type “AC” chute door assembly. Collar is made of 20 gauge galvannealed steel. Collar allows for through bolting to a round chute which does not have mounting clips on the bottom...

SKU: 500742
$80.09
$76.09

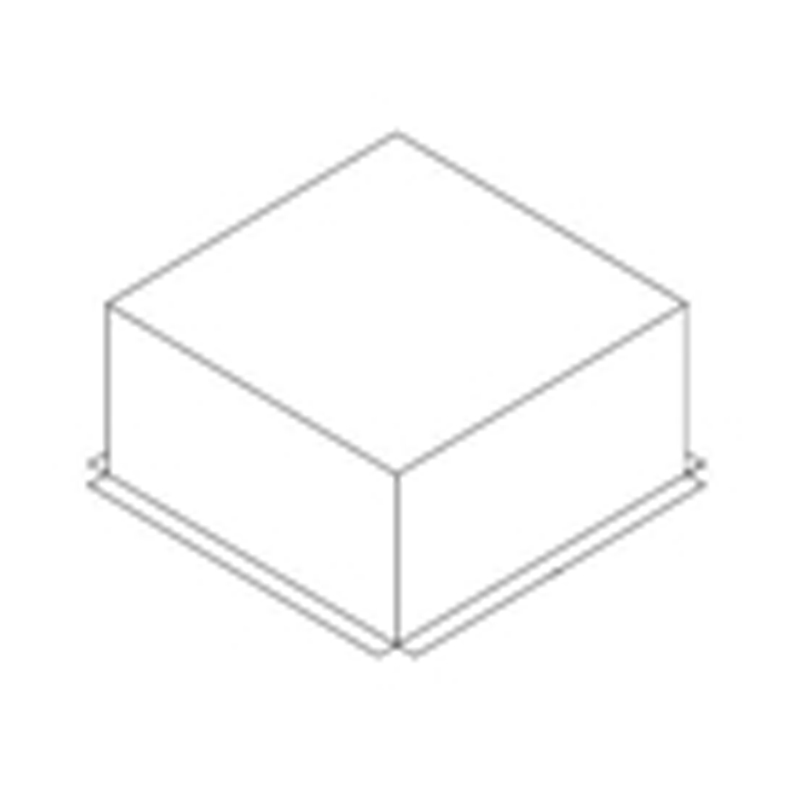

18” Square 12” Long Extension Collar for Chute Discharge Door, Type “AC”

“W” Series, Discharge Door extension collar only for an 18" diameter Type “AC” chute door assembly. Collar is made of 20 gauge galvannealed steel. Collar allows for through bolting to a square chute which does not have mounting clips on the...

SKU: 500031
$81.23
$77.17

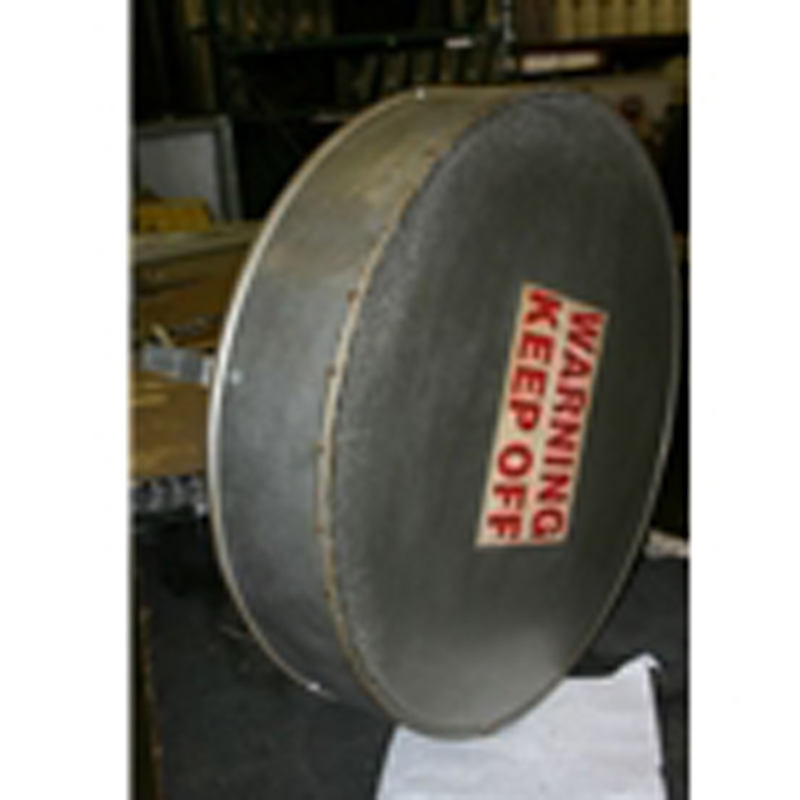

Roof Vent Cap for 18" Diameter Chute, "W" Series

This is the cap with mounting clips only to fit a 18" full diameter vent stack. Cap made with knock-out panel on top and includes "Do Not Stand" safety labeling. Replaces those used by Western Chutes, Compactors and Recycling Systems, Wilkinson...

SKU: 700011
$187.50
$178.13

28" x 28" Draft Stop

Two piece, #20ga galvannealed steel sheet metal flashing and draft stop, some times referred to as fire stop, installed at floor openings around the chute to separate the chute shaft from the collection room. Occasionally installed at every...

SKU: 500990
$72.50
$68.88

20" Round, Horizontal, Fire Rated Chute Discharge Door Housing, Galvannealed Steel

“W” Series, Discharge Door round housing only for an 20" Type “AC” chute door assembly. This square to round housing is manufactured of 20 gauge galvannealed, flat sheet metal ready to accommodate the same size discharge door insert. Type 304...

SKU: 500149
$102.60
$97.47
