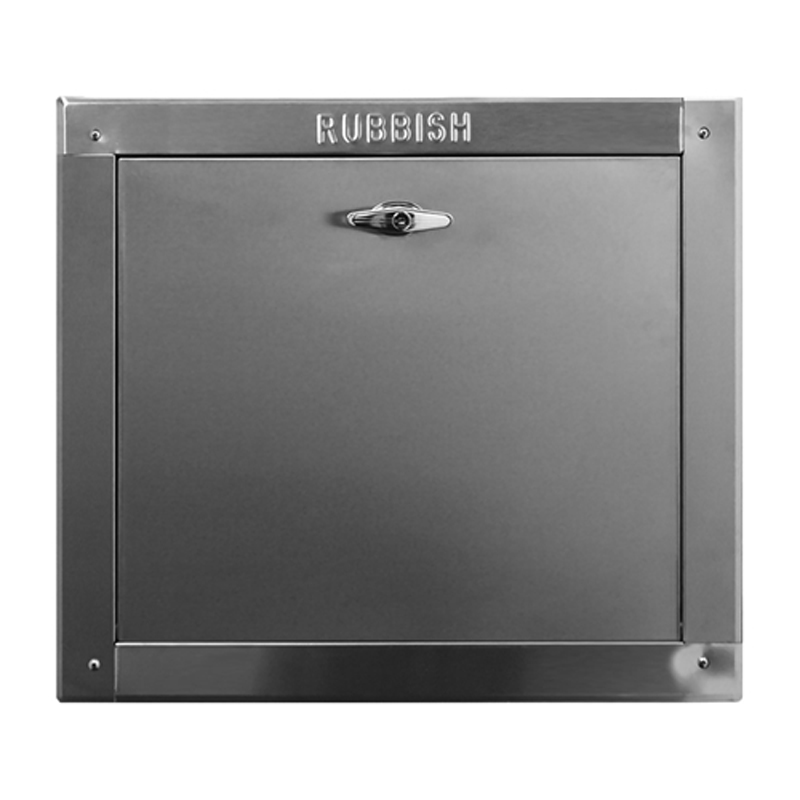

“R” series 21 inch by 18 inch Bottom hinged chute intake door.
“R” series 21 inch by 18 inch Bottom hinged chute intake door.

SKU: 500100
Regular Price: $472.85
Patient Regular Price: $449.21
Special Order Product
21"x18" Bottom Hinged Intake Door Assembly, "R" Series
21"w x 18"h Bottom hinged, hand-operated, self-closing, positive latching, 1-1/2 hour UL labeled chute intake door assembly complete. Includes replaceable "T" style handle with key, latch assembly, and door closer. Door uses a 1/2” shaft and flanged bronze bearing hinge system which is welded to the door and frame. The panel can not be removed or replaced. Door panel made with a 22 gauge type 304 stainless steel front with a No. 4 finish and 18 gauge galvannealed steel back. Closer is exposed to the door opening for ease of replacement; however, wears quicker than the "W" series from exposure to waste. "T" style handle can be changed to pull handle with thumb latch trigger at no additional charge.

When ADA compliance is required these doors can be customized with ADA compliant lever handles. There are no other accessory options for this door. A direct replacement for Valiant Products, Midland Chutes, Century Chutes and American Chutes and replaces easily with minimal wall damage. Can be retrofitted to others chutes with sheet metal adaptors and wall modifications to fit chute door openings for doors of the same size. Complies with building codes, NFPA-82 and ASTM standards. Made in the USA by Union Craftsmen.

Chute Doctor Keeping Your Chute Healthy™

California License #767939; Arizona License #ROC149925
