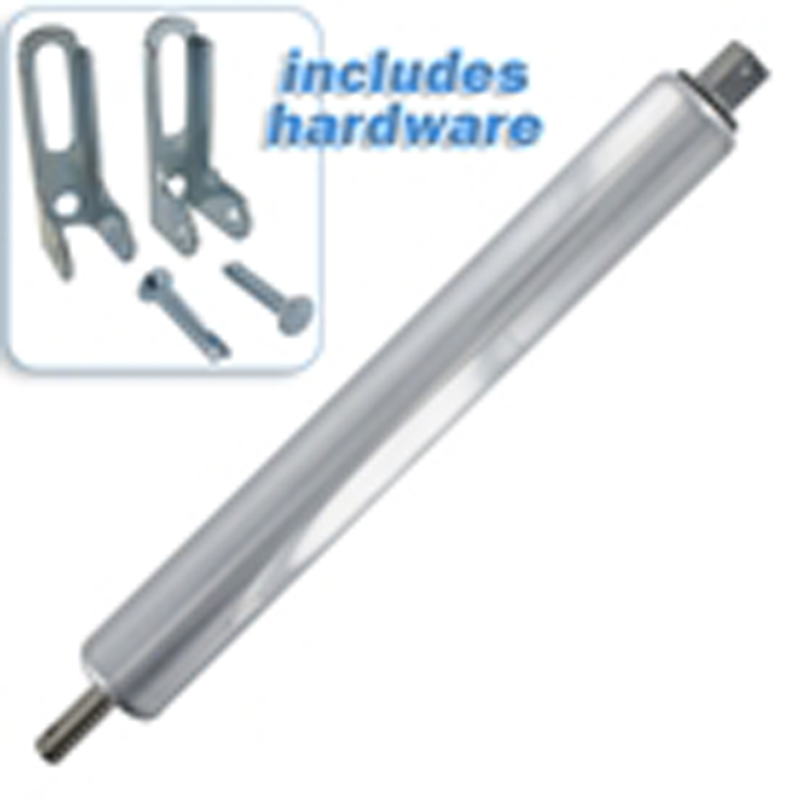

This 6” retracted hydraulic door closer is for use on rubbish or linen chute bottom-hinged intake doors. The 6” retracted closer cylinder is 1” in diameter. The rod diameter is 5/16” with a #30 cross hole at the end of the shaft. Included...

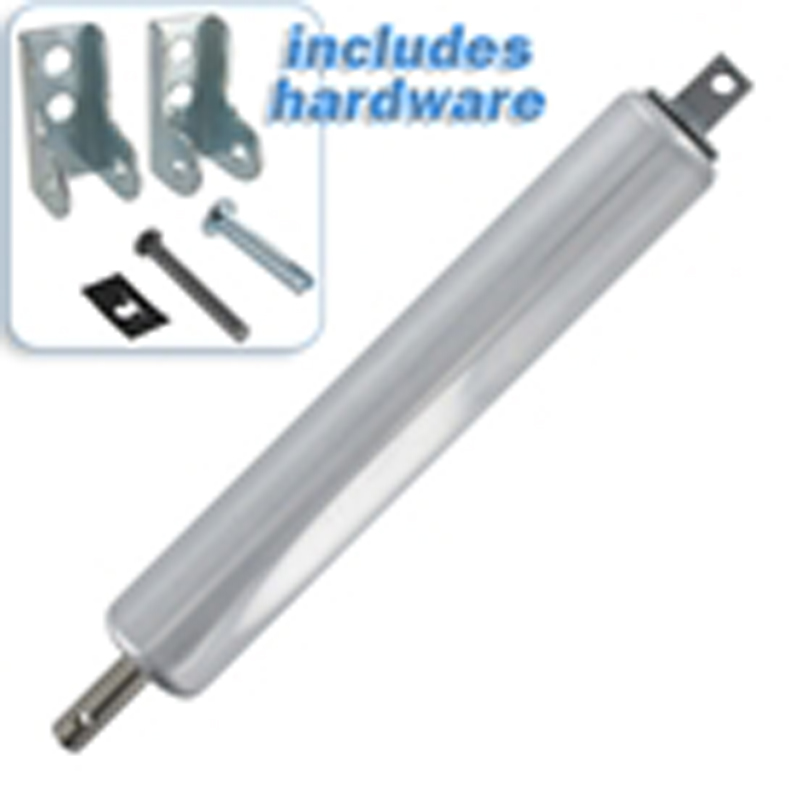

This 8” retracted hydraulic door closer is for use on rubbish or linen chute bottom-hinged intake doors. The 8” closer cylinder is 1” in diameter. The rod diameter is 5/16” with a #18 cross hole at the end of the shaft. Included hardware...

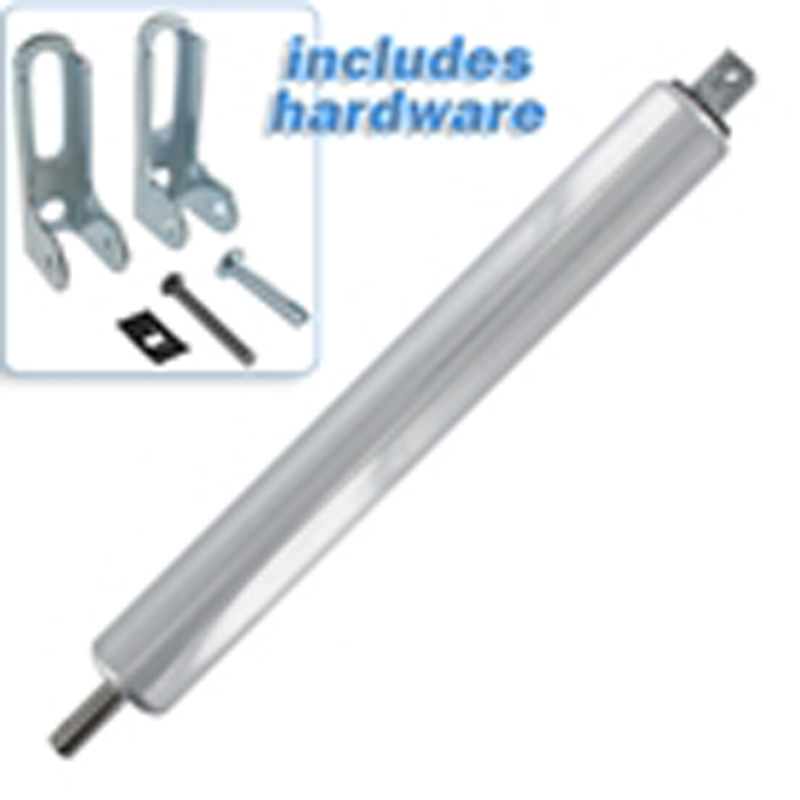

This 8” retracted hydraulic door closer is for use on rubbish or linen chute bottom-hinged and side-hinged intake doors. The 8” closer cylinder is 1” in diameter. The rod diameter is 5/16” with a #30 cross hole at the end of the shaft. Included...

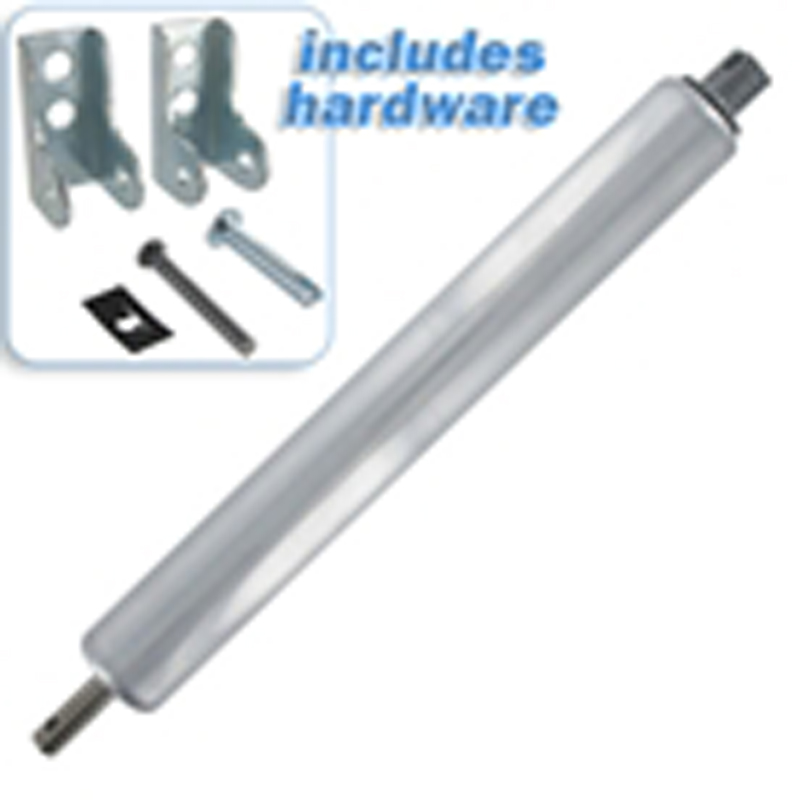

This 8” retracted hydraulic door closer is for use on rubbish or linen chute bottom-hinged intake doors. The 8” closer cylinder is 1” in diameter. The rod diameter is 5/16” with a #56 cross hole at the end of the shaft. Included hardware...

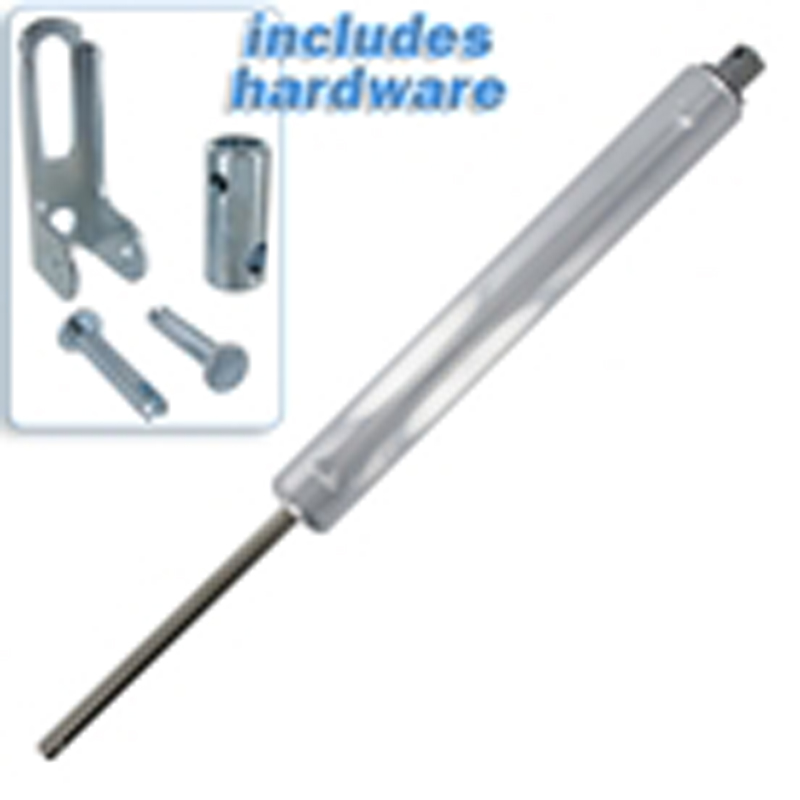

This 8” extended shaft hydraulic door closer is for use on rubbish or linen chute bottom-hinged intake doors. The 8” closer cylinder is 1” in diameter. The rod diameter is 5/16” with a #18 cross hole at the end of the shaft. The rod extends to 4...

8" hydraulic closer kit for use on side hinged intake doors. This kit includes 8" hydraulic closer, butterfly bracket, pivot arm, two mounting shoes and all applicable hardware. This kit can be used on either a left or right side hinged intake...

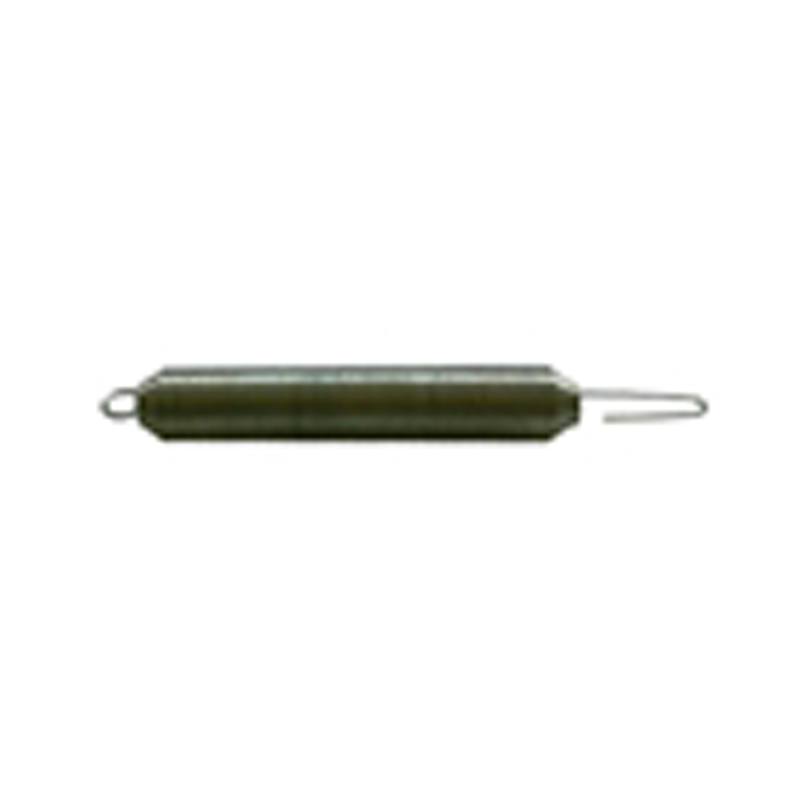

Replacement springs for use on any Horizontal, Rolling Discharge Door in the “R” Series. Door is held open with fusible link with spring tension ready to snap the door closed when link melts. Springs weaken in time and must be replaced to...

Replacement 17" extended closer with snap connectors and fail safe spring assembly for use on all Western Chutes Bottom Hinged Hand Operated 5# effort ADA compliant intake doors.

Round Head Pivot Pin with Tinnerman style speed nut used for attaching retracted hydraulic door closer to butterfly and other mounts through a shaft with a #30 (.1285") hole in the shaft. A direct replacement for Wilkinson, Wilkinson Chutes,...

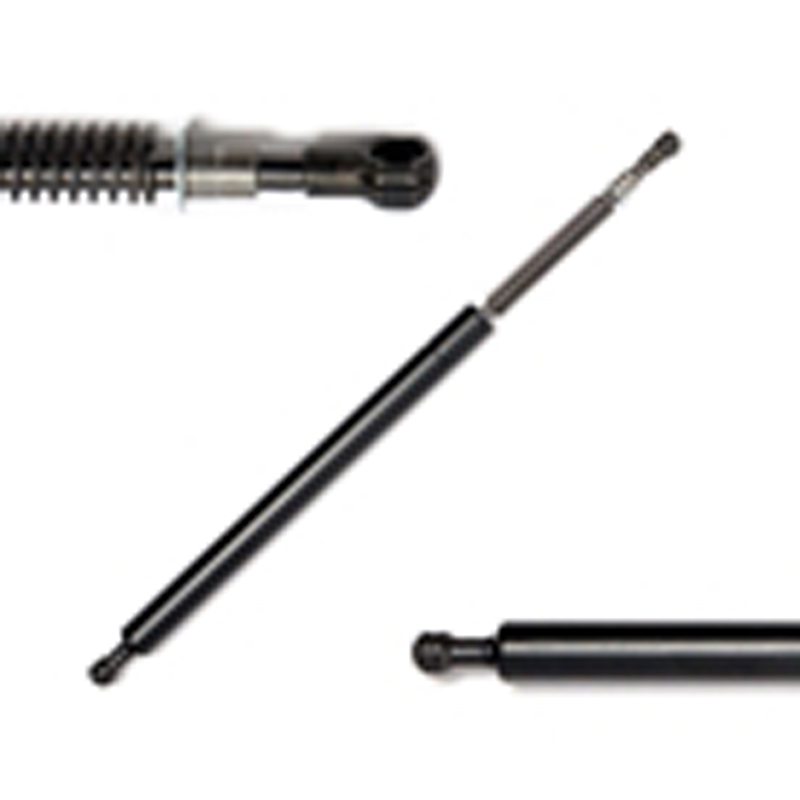

Heavy duty, extended, nitrogen filled, gas trash chute or linen chute intake door closer complete with ball socket mount end on rod and cylinder used in Western Chutes WM & M Series bottom hinged ADA compliant chute intake doors as well as...

Heavy duty, extended, nitrogen filled, gas trash chute or linen chute intake door closer complete with ball socket mount end on rod and cylinder And boost spring used in Western Chutes WM & M Series bottom hinged ADA compliant chute intake doors...

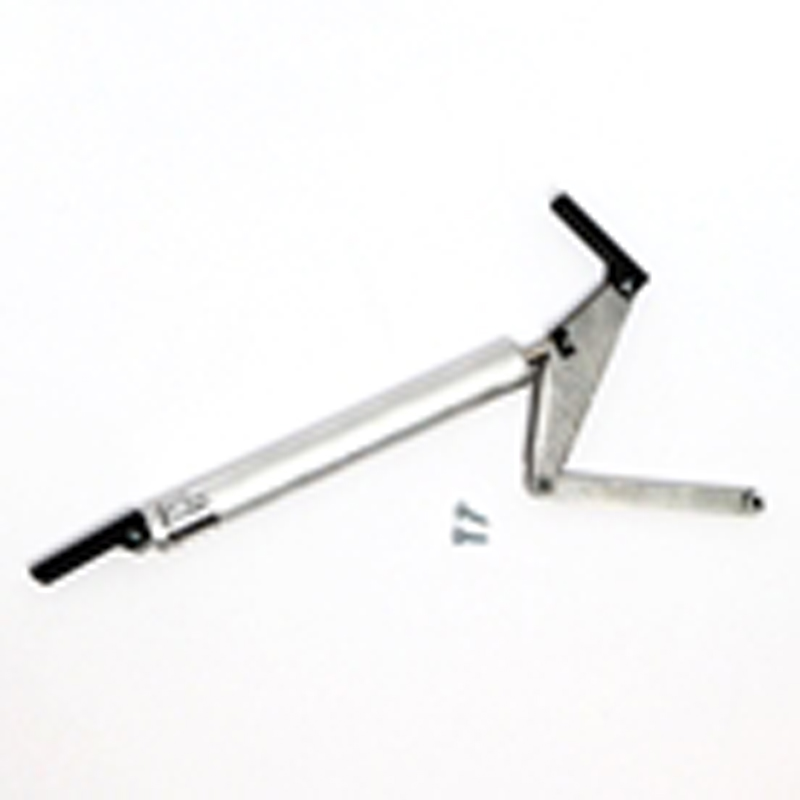

4" Rotary closer with pivot arm assembly and mounting bolts. Replaces hydraulic rotary closers used on trash chute and linen chute side hinged intake doors. This closer is used by many manufacturers.

8" hydraulic closer with butterfly bracket, pivot arm, two mounting shoes, mounting bracket, locating plate for frame, and all applicable hardware to upgrade trash chute and linen chute intake doors currently using rotary closers to a retracted,...

Sheet metal butterfly bracket used in many manufacturers side hinged intake door closer assemblies. Includes socket shoulder bolt with lock nut, and split rivet only
