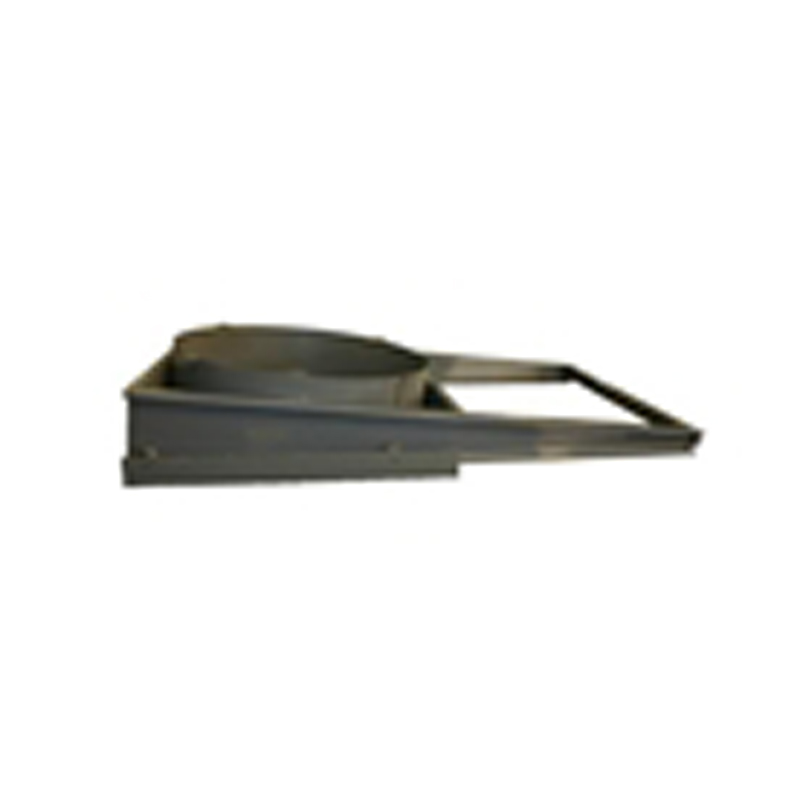

36" Horizontal, Rolling Discharge Door Assembly, Type “A”, "W" Series

36" fire resistive non-rated, horizontal, rolling, open end trash chute or linen chute discharge door. Door is equipped with a 165 degree fusible link designed to melt when the ambient temperature of a fire reaches 165 degrees. This action closes the door to stop fire from traveling up the chute into the building. Door rolls shut on an inclined track. Fusible link, pendant wire, wheels, and door panel are replaceable. The door panel is made of #18 gauge galvannealed steel with a #14 gauge frame. This discharge door is available for square or round chutes in the standard sizes of 18” to 36”. Door has an all welded door and frame with a collar to fit an 36” round chute.

Discharge door is not designed to be used to shut off the chute.

A direct replacement for any manufacturers horizontal non-rated discharge doors, including Western Chutes Type “A” and others. Can be retrofitted to others chutes with spacers or sheet metal adaptors and mounting clips.
