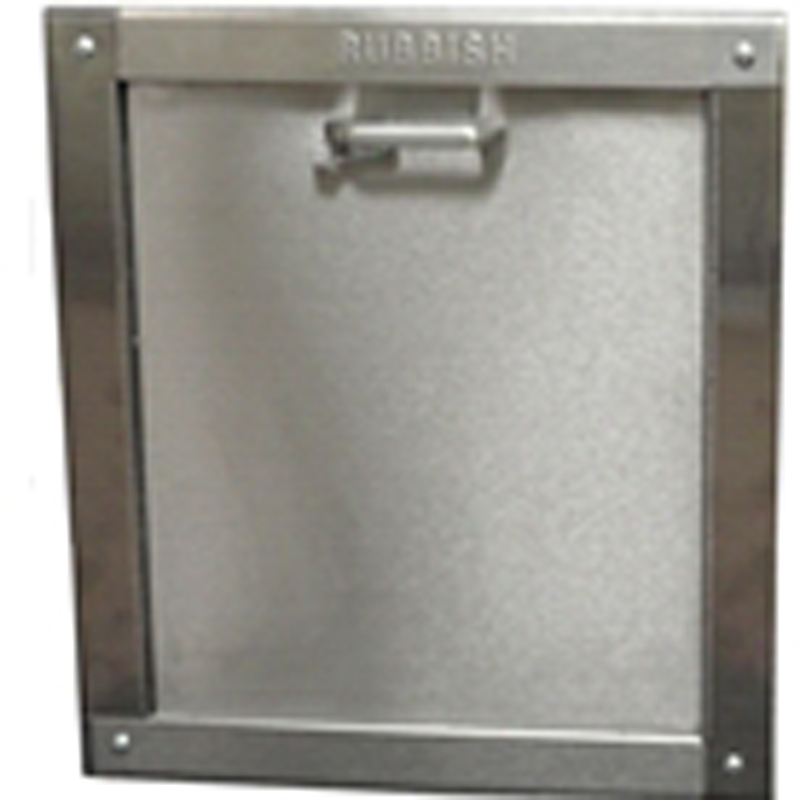

18"x18" Bottom Hinged Intake Door Assembly, "WM" Series

• Nominal Size: 18" Width x 18" Height.
• Complete Chute Intake Door Assembly.
• Bottom Hinged.
• Hand Operated.
• Self Closing.
• Lever Style Handle.
• Positive Latching.
• 1-1/2 hour UL labeled.
• "WM" Western Chutes/Midland Style.

Includes:

Operator: Replaceable pull handle with thumb latch trigger assembly.
Door closer: Mounted outside to the trash opening in a fully enclosed box accessible from the front to ensure years of trouble free operation.
Door panel: 1/2" shaft hinge system is welded to the door panel which screws into the frame, allowing replacement. Panel made with 20 gauge type 430 stainless steel and 18 gauge galvannealed steel back.
Trim: Stainless Steel, available blank or embossed with "Rubbish", "Soiled Linen", or "Recycle".

A direct replacement for: Midland Chutes #WB1518, formerly Midland Metalcraft.

Can retrofit to other chutes with sheet metal adaptors and wall modifications to fit chute door openings for doors of the same size. Replaces easily with minimal wall damage. Accessories available include electrical interlocks, key locks, and more.

Complies with building codes, NFPA-82 and ASTM standards.
