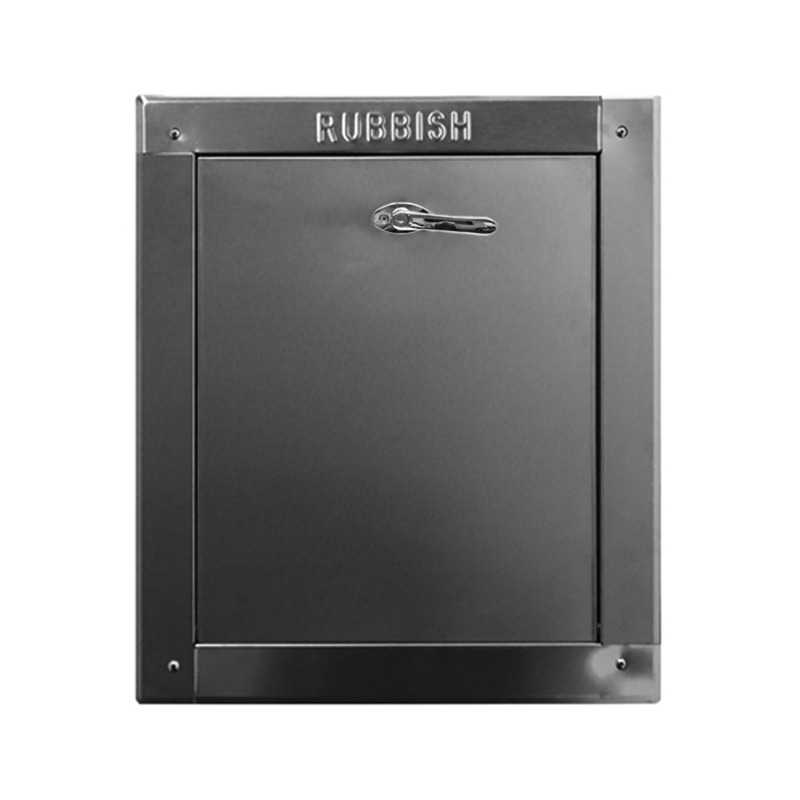

15"x18" Bottom Hinged Intake Door with ADA Handle & 15# Pull, "R" Series

• Complete Chute Intake Door Assembly.
• Nominal Size: 15" Width x 18" Height.
• Bottom Hinged.
• Hand Operated.
• Self Closing.
• Positive Latching.
• ADA Compliant Lever Handle.
• 1-1/2 hour UL labeled.
• "R" Replacement Style.

Includes:

Operator: ADA Compliant Lever Handle.
Door closer: Closer is exposed to the door opening for ease of replacement (wears quicker than the "W" Series because of exposure to waste.)
Door panel/frame: A 1/2” shaft and flanged bronze bearing hinge system is welded to the door and frame which cannot be removed/replaced. Made with 22 gauge type 304 stainless steel front with #4 finish and an 18 gauge galvannealed steel back.
Trim: Stainless Steel, available blank or embossed with "Rubbish", "Soiled Linen", or "Recycle" or without trim.

This door complies with ADA requirements of 5# effort to operate handle ONLY. It DOES NOT meet the 5# effort to open the door to be fully ADA compliant. To meet requirements the AHJ must have and exercise the exception allowing an up to 15# pull effort.

A direct replacement for: Valiant Products, Midland Chutes, Century Chutes and American Chutes and replaces easily with minimal wall damage. Can retrofit to other chutes with sheet metal adaptors and wall modifications to fit chute door openings the same nominal size. Replaces easily with minimal wall damage.

Complies with building codes, NFPA-82 and ASTM standards.
