Replacement Closer With Boost Springs for ADA Compliant WM & M Series Bottom-Hinged Intake Doors Ball With Ball Socket Ends
SKU: 501302
Regular Price: $75.00
Patient Regular Price: $71.25 Normally Stocked
|
Replacement Closer With Boost Springs for ADA Compliant WM & M Series Bottom-Hinged Intake Doors Ball With Ball Socket Ends

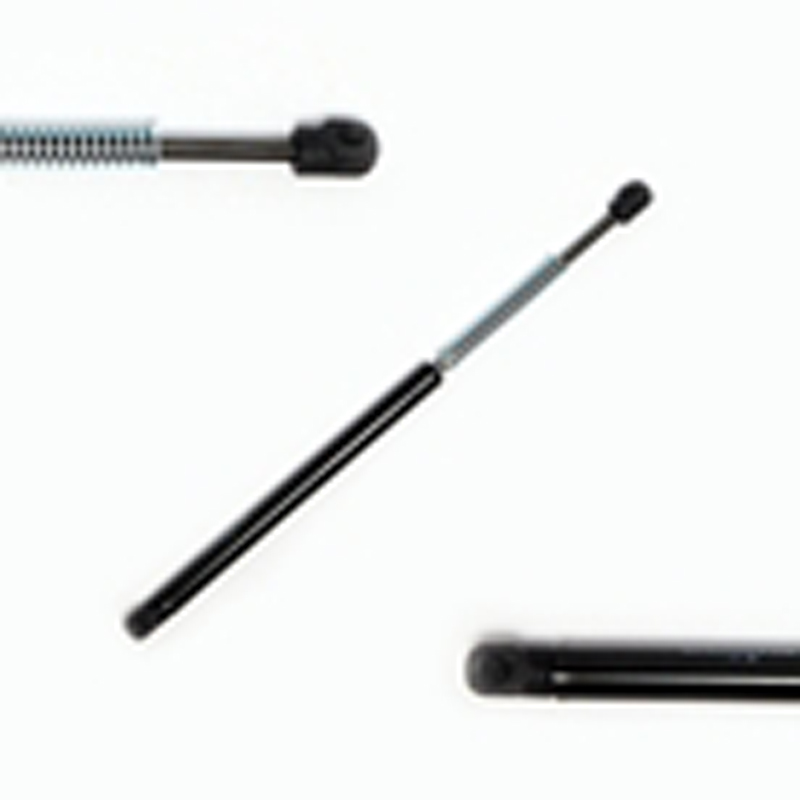

Heavy duty, extended, nitrogen filled, gas trash chute or linen chute intake door closer complete with ball socket mount end on rod and cylinder And boost spring used in Western Chutes WM & M Series bottom hinged ADA compliant chute intake doors as well as Midland Chutes, formerly Midland Metalcraft. See product dimension sheet for additional information and to verify this is the correct replacement cylinder. Replacement Closer can be purchased at 501301 without spring if desired.
Tube is 15mm (37/64")
Rod is 6mm (15/64")
Center to Center Length extended is 17.1" (17-3/32")
Center to Center Length compressed is 10.8" (10-25/32")
Force 20# (089N)
10mm plastic ball socket on both ends
Close Assist booster spring on shaft
|
   |
 |
  |
