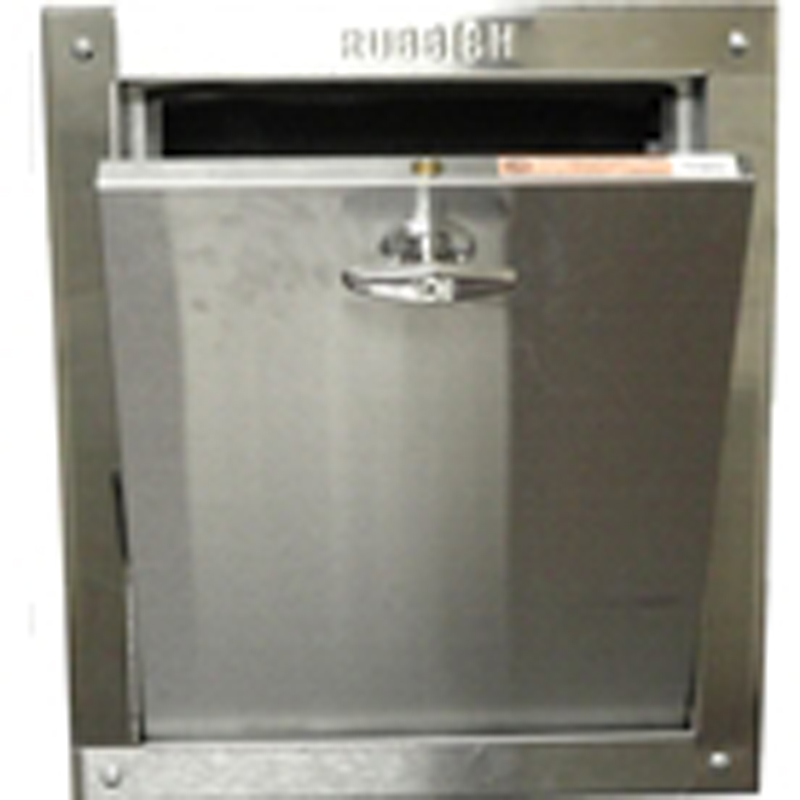

24"x24" Bottom Hinged Intake Door Assembly, "M" Series

• Complete Chute Intake Door Assembly.
• Professional Installation Required
• Nominal Size: 24" Width x 24" Height.
• Bottom Side Hinged.
• Hand Operated.
• Self Closing.
• Positive Latching.
• "T" Style Handle.
• 1-1/2 hour UL labeled.
• "M" Midland Style.

Includes:

Operator: "T" Style Handle. To change to a 4" pull handle with latch thumb trigger, add SKU #500757.
Door closer: Closer is exposed to the door opening for ease of replacement (wears quicker than the "W" Series because of exposure to waste.)
Door panel/frame: Door uses a 1/2" shaft hinge system for the door panel which is welded to the door and frame. The panel can not be removed or replaced. Door panel made with 20 gauge type 304 stainless steel front with a No. 4 finish and 18 gauge galvannealed steel back.
Trim: Stainless Steel, available blank or embossed with "Rubbish", "Soiled Linen", or "Recycle".

A direct replacement for Midland #MB2424, formerly Midland Metalcraft, and replaces easily with minimal wall damage. Can be retrofitted to others chutes with sheet metal adaptors and wall modifications to fit chute door openings for doors of the same size.

Complies with building codes, NFPA-82 and ASTM standards.

WARNING: CAUTION REQUIRED WHEN USING 24" x 24" CHUTE INTAKE DOORS

Purchasing and installing 24" x 24" chute intake doors requires careful consideration due to the larger size. This dimension can present a safety hazard, as it is large enough for a human to fit into, increasing the risk of injury or entrapment.

Key Safety Considerations:

1. Restricted Access: Only authorized personnel should have access to areas where these chute doors are installed.
2. Proper Supervision: Ensure oversight when the chute doors are in use to prevent accidents.
3. Signage: Install visible warning signs near the chute doors to alert users to the potential danger.
4. Safety Interlocks: Use on a chute system with safety interlocks to prevent operation when the intake door is open.
5. Alternative Sizes: Make every accommodation to use a smaller intake door size to mitigate this risk.

Disclaimer:
It is the responsibility of the purchaser and installer to ensure that all safety measures are in place, and the chute is used in compliance with local safety codes and regulations. Failure to address these concerns may cause serious injury or harm.

Proceed with caution.

LISTED LIFE-SAFETY FIRE DOOR - PROFESSIONAL INSTALL ONLY:

This is a listed/rated chute fire door assembly. Buyer and Installer must verify door rating, size, and elevation above finished floor comply with the door listing, NFPA 82 sizing limits, NFPA 80, and all local code and AHJ requirements. Door must be installed by a licensed qualified professional and must remain self-closing and positive-latching at all times. Annual inspection/certification is required. Any door that fails to self-close or latch must be secured closed and removed from service until fully repaired and re-inspected.

Please confirm installation type from pull down menu. Required for ordering.
